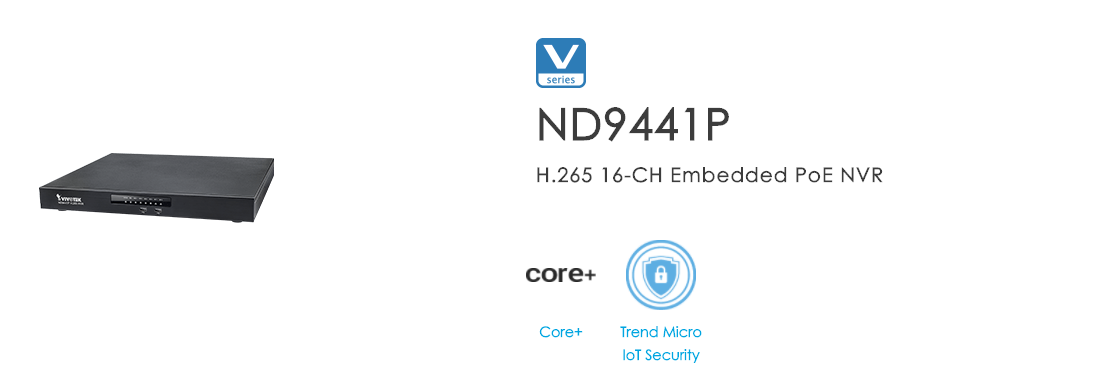

ND9441P – Vivotek H.265 16-CH Embedded PoE NVR

VIVOTEK’s ND9441P and ND9541P are H.265 Linux-based standalone NVRs with embedded PoE. Equipped for up to 16-CH/32-CH network cameras, the NVRs both support 16x 802.3 at/af PoE ports which feature PoE Management function to help users troubleshoot the physical layer structure. Both also display the PoE power information, providing for a more convenient and smarter installation.

The ND9441P/ND9541P also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android handheld devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification, providing users with a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.

With H.265 compression technology and embedded with 4 HDD’s providing up to 32TB, the ND9441P/ND9541P offers greater than 30% more recording capacity than H.264 systems. This advancement provides users with more storage space for longer durations of video recording. In addition, the RAID 0/1/5 configurations provide further data security in the rare event of a hard drive failure.

For high-quality and detailed images, the ND9441P/ND9541P supports a maximum network camera resolution of 12 Megapixels. To intelligently manage bandwidth while maintaining this high-quality, the “Auto Adaptive Stream” function will adjust the display resolution automatically for each different layout type.
Furthermore, the NVR supports VIVOTEK’s fisheye network camera “Fisheye Dewarp” function, which provides multiple de-warping modes in live view and playback, ensuring the correct angle of video view and detailed information for flexible usage. Lastly, to quickly and intuitively find any target event, the ND9441P/ND9541P is equipped with the “Story-Board Search” function, which provides a glimpse of past recordings over an intuitive timeline.

The ND9441P/ND9541P supports HDMI and VGA local video output, so users can control the GUI OSD interface via mouse & keyboard, eliminating the need for a separate PC to search video or playback from the NVR. Additionally, the intuitive and friendly VIVOTEK GUI design gives users a smoother control experience than ever before.

In alliance with world-renowned cybersecurity company Trend Micro, Core+ 3.0 NVRs support Trend Micro IoT Security, empowering the NVRs to automatically detect and prevent credential-based attacks and to block suspicious events. VIVOTEK network cameras that support Trend Micro IoT Security can also connect in series with Core+ 3.0 NVRs, enabling the NVRs to receive instant notifications of the security events from the cameras and to understand the type and status of cyber-attacks, as well as to acquire attack information from cameras. In addition, VAST 2 (VMS) receives information on security protection attacks from Core+ 3.0 NVRs and VIVOTEK cameras.

The Core+ 3.0 NVRs support alarm management and event search of VIVOTEK’s deep-learning video analytics technology, Smart VCA and Smart 360 VCA. VCA rules and information such as people-tracking frames and motion-detection frames can be shown on live or playback video display. The user can search by single or multiple event types, playback triggered events and then export these search results to video clips.

Cameras supporting VIVOTEK Smart Motion Detection technology, which detects people activities, can also connect with Core+ 3.0 NVRs. Based on the camera metadata recorded on the hard drive of the NVRs, the NVRs can then deploy the advanced Smart Search II technology, activate the people detection function, and proceed to search the corresponding playback video. This allows for faster sorting through large amounts of evidence to find precisely what is needed.

The Core+ 3.0 NVRs support VIVOTEK’s 3D people counting cameras and cloud service software – VIVOCloud. Counting rules can be shown on the NVR’s video display from counting cameras. Besides, all of the counting data can be stored automatically to the NVR’s hard drive as well as be acquired by VIVOCloud. Users can also build customized counting reports through the VIVOCloud interface. This enables tracking of in-store guest flow and benchmarking of campaign performance between different stores or across different time frames to make business more efficient.
